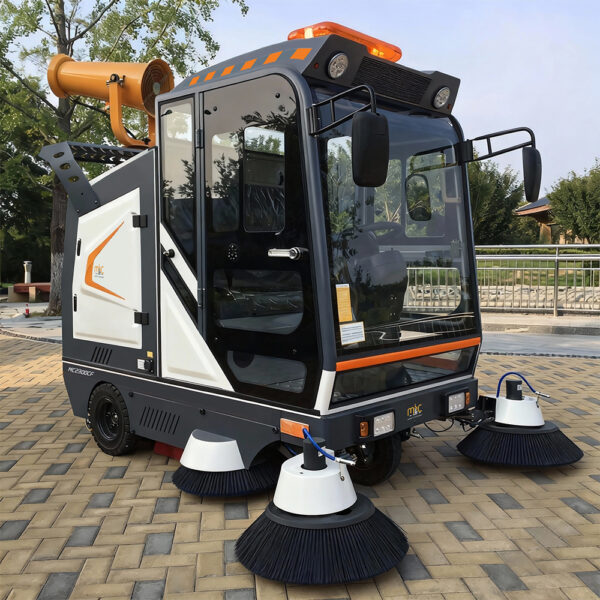

MC2300CF
Driving Sweepers
- 2.3m cleaning width, 200L water tank, suitable for cleaning areas such as airports, high-speed rail stations, exhibition halls, lots and municipal roads.
- High power AC rear axle drive, with stronger climbing ability The retractable floating skirt edge always stays close to the ground and needs to be adjusted for strong energy collection
- Integrated electrical control, board visualization, and more convenient operation
- Multiple full protection functions, combined with dual filtering devices, effectively extend the lifespan of the motor
Specification
| Model | MC2300CF | Unit |
| Dimension (L*W*H) | 2750*2300*2000 | mm |
| Total weight | 1000 | kg |
| Maximum operating speed | 12 | km/h |
| Sweeping width | 2300 | mm |
| Main brush width | 800 | mm |
| Working efficiency | 20000 | ㎡/h |
| Drive Motor Power | 2200 | W |
| Side Brush Motor power | 100*4 | W |
| Roller brush motor power | 1000 | W |
| Dustbin Capacity | 240 | L |
| Water tank capacity | 200 | L |
| Filtering area | 10 | ㎡ |
| Edge brush radius | front400*2, rear300*2 | mm |
| Lead acid battery | 48V203AH | |
| Lithium battery (optional) | 48V200AH |
